前言¶

概述

本文章是基于视觉SS928V100开发板，进行OpenHarmony 5.1.0 Release小型系统相关功能的移植；主要包括解决方案集成，产品配置添加，内核移植适配、编译，XTS认证，图形增强特性，媒体增强特性的适配案例总结。

读者对象

本文档主要适用于视觉OpenHarmony Small系统升级的操作人员。操作人员必须具备以下经验和技能：

熟悉OpenHarmony源码编译构建。
熟悉视觉类芯片SDK版本。

符号约定

在本文中可能出现下列标志，它们所代表的含义如下。

符号	说明
	表示如不避免则将会导致死亡或严重伤害的具有高等级风险的危害。
	表示如不避免则可能导致死亡或严重伤害的具有中等级风险的危害。
	表示如不避免则可能导致轻微或中度伤害的具有低等级风险的危害。
	用于传递设备或环境安全警示信息。如不避免则可能会导致设备损坏、数据丢失、设备性能降低或其它不可预知的结果。 “须知”不涉及人身伤害。
	对正文中重点信息的补充说明。 “说明”不是安全警示信息，不涉及人身、设备及环境伤害信息。

修改记录

文档版本	发布日期	修改说明
00B01	2025-09-15	第1次临时版本发布。

芯片解决方案配置¶

本方案移植架构上采用Borad和SoC解耦的设计思路，芯片目录规划如下：

device_board_hisilicon

本目录用于存放SS928V100的开发板相关内容，支持运行小型系统的开发板；介绍了单板、内核、工具链和编译器等信息。

device/board/hisilicon/hispark_ss928v100/
├── BUILD.gn
├── linux
│   ├── BUILD.gn
│   ├── config.gni       #用于描述这个产品样例所使用的单板、内核、工具链、编译器等信息
│   ├── LICENSE
├── ohos.build            #定义一个device_hispark_ss928v100子系统，该设备下module_list字段列出了设备需要加载的模块
└── README_zh.md

device_soc_hisilicon

本目录用于存放芯片相关内容，包含HDI实现（display、media、middleware）、芯片SDK（用户态库、头文件、驱动源码、MPP Sample等）

device/soc/hisilicon
├── common
│   ├── hal
│   │   ├── BUILD.gn
│   │   ├── build.sh
│   │   ├── display
│   │   │   ├── BUILD.gn
│   │   │   ├── ...
│   │   │   └── ss928                 #支持SS928V100和SS927V100的媒体中间件
│   │   ├── LICENSE
│   │   ├── media
│   │   │   ├── audio
│   │   │   ├── build
│   │   │   ├── BUILD.gn
│   │   │   ├── build.sh
│   │   │   ├── camera
│   │   │   ├── codec
│   │   │   ├── common
│   │   │   ├── format
│   │   │   ├── Makefile
│   │   │   └── ...
│   │   ├── middleware                #媒体中间件
│   │   │   ├── source                #支持SS928V100和SS927V100的媒体中间件
│   │   │   └── ...
│   │   └── ...
│   └── ...
└── ss928v100
    ├── burn
    │   └── emmc_burn_table.xml      #烧写emmc介质的镜像分区表
    ├── kernel
    │   └── arch
    ├── NOTICE
    ├── README_zh.md
    ├── sdk_linux
    │   ├── BUILD.gn
    │   ├── build.sh                 #编译SDK入口：编译ko、atf
    │   ├── config.gni
    │   ├── open_source              #编译SDK依赖的开源软件，提供配置指导和定制补丁
    │   ├── smp                      #SDK软件，自研，包括内核驱动源码、sample实例代码，闭源库
    │   ├── ss928v100_sdk_patch_001.patch    #OpenHarmony环境上编译SDK制作的patch
    │   └── ss928v100_sdk_patch_002.patch    #基于编译内核fip.bin ATF制作的patch
    ├── soc.gni
    └── uboot
        └── LICENSE

说明： 基于device/soc/hisilicon/ss928v100/sdk_linux主要是基于芯片SDK的适配，下面将展开详细介绍：

该目录下的smp和open_source目录内容为芯片SDK提供内容，可以直接从SDK中拷贝使用

ss928v100_sdk_patch_001.patch和ss928v100_sdk_patch_002.patch：由于SDK和OpenHarmony代码、编译环境差异，需要在OpenHarmony下应用定制补丁

uboot：已提供源码，需自行编译生成

SDK编译适配¶

配置OpenHarmony环境上编译芯片SDK的相关参数。

修改文件device/soc/hisilicon/ss928v100/sdk_linux/BUILD.gn，配置芯片SDK编译的相关参数。

ohos_root_path：OpenHarmony源码目录；
outdir：编译out目录；
y：是否为Lite型系统；
clang_dir：编译工具链路径；
linux_kernel_version：指定使用的内核版本；
chip：芯片型号。

if (defined(ohos_lite)) {
  build_ext_component("sdk_make") {
    exec_path = rebase_path(".", root_build_dir)
    outdir = rebase_path("$root_out_dir")
    clang_dir = ""
    if (ohos_build_compiler_dir != "") {
      clang_dir = rebase_path("$ohos_build_compiler_dir")
    }
    chip = "ss928v100"
    if (board_name == "hispark_ss927v100") {
      chip = "ss927v100"
    }
    command = "./build.sh ${ohos_root_path} ${outdir} y ${clang_dir} ${linux_kernel_version} ${chip}"
    deps = [ "//kernel/linux/build:linux_kernel" ]
  }
  not_needed(sdk_modules_name_list)
} else {
  sdk_tmp_root_path = root_out_dir
  sdk_tmp_dir = "$sdk_tmp_root_path/sdk_linux/src_tmp"
  sdk_tmp_mods_dir = "$sdk_tmp_dir/out/ko"
...

配置SDK编译工具链。

SDK包中提供内核驱动源码和Sample源码，可以通过源码进行编译。在编译前，需要配置编译工具链，将编译工具链路径加入到环境变量中。

将Clang编译工具链路径加到环境变量中，执行：export PATH=/path/to/toolchains:$PATH

例如，Clang所在的路径为/path/to/llvm_clang/bin，则执行：export PATH=/path/to/llvm_clang/bin:$PATH

在OpenHarmony环境上编ko和atf。

修改device/soc/hisilicon/ss928v100/sdk_linux/build.sh

set -e
OHOS_ROOT_PATH=$1
OUTDIR=$2
OHOS_LITE=$3
COMPILER_DIR=$4
CHIP=$6

export KERNEL_VERSION="$5"

if [ -z "${OHOS_ROOT_PATH}" ];then
    OHOS_ROOT_PATH=$(pwd)/../../../..
else
    echo "OHOS_ROOT_PATH=${OHOS_ROOT_PATH}"
fi

export OHOS_ROOT_PATH
if [ ${COMPILER_DIR} != "" ];then
    export COMPILER_PATH=${COMPILER_DIR}/bin
fi

SDK_LINUX_SRC_PATH=${OHOS_ROOT_PATH}/device/soc/hisilicon/ss928v100/sdk_linux
SDK_LINUX_TMP_PATH=${OUTDIR}/sdk_linux/src_tmp
SDK_LINUX_SMP_PATH=${SDK_LINUX_TMP_PATH}/smp
SDK_LINUX_OPEN_PATH=${SDK_LINUX_TMP_PATH}/open_source
SDK_LINUX_ATF_PATH=${SDK_LINUX_TMP_PATH}/open_source/trusted-firmware-a
SYSROOT_PATH=${OHOS_ROOT_PATH}/out/hispark_${CHIP}/ipcamera_hispark_${CHIP}_linux/sysroot
export SYSROOT_PATH
OSDRV_CROSS_PATH=${OHOS_ROOT_PATH}/prebuilts/gcc/linux-x86/aarch64/gcc-linaro-7.5.0-2019.12-x86_64_aarch64-linux-gnu/bin/aarch64-linux-gnu
...

echo "Add patchs to sdk..."
pushd ${SDK_LINUX_SMP_PATH}
patch -p1 < ./ss928v100_sdk_patch_001.patch
popd

echo "Add patchs to atf..."
pushd ${SDK_LINUX_ATF_PATH}
patch -p1 < ./ss928v100_sdk_patch_002.patch
popd

echo "compile ko..."
 pushd "${SDK_LINUX_SMP_PATH}/a55_linux/mpp/out/obj" && \
    make clean OHOS_LITE=y CHIP="${CHIP}" SYSROOT_PATH="${SYSROOT_PATH}" && \
    make -j OHOS_LITE=y CHIP="${CHIP}" SYSROOT_PATH="${SYSROOT_PATH}" && popd
echo "compile atf..."
 pushd ${SDK_LINUX_OPEN_PATH}/trusted-firmware-a && make clean OHOS_LITE=y &&
 make -j OHOS_LITE=y CHIP=${CHIP} KERNEL_VER=${KERNEL_VERSION} OSDRV_CROSS=${OSDRV_CROSS_PATH}&& popd
...

pushd ${SDK_LINUX_SMP_PATH}/a55_linux/mpp/out/lib
for lib_name in "${sdk_libs_name_set[@]}"; do
    if [ -f "$lib_name" ]; then
        cp -f $lib_name ${OUTDIR}
    fi
done
popd

mkdir -p ${SDK_LINUX_TMP_PATH}/out
cp -rf ${SDK_LINUX_SMP_PATH}/a55_linux/mpp/out/ko ${SDK_LINUX_TMP_PATH}/out

# copy images and burn_table file
cp -rf ${SDK_LINUX_SRC_PATH}/../burn/* ${OUTDIR}
# cp uImage，exe atf, flip.bin改名uImage，并替换掉；
cp -rf ${SDK_LINUX_OPEN_PATH}/trusted-firmware-a/trusted-firmware-a-2.2/build/${CHIP}/release/fip.bin ${OUTDIR}
# $(hide) cp -rf $(KERNEL_OBJ_TMP_PATH)/arch/$(KERNEL_ARCH)/boot/uImage $(OUT_DIR)

说明：

此处重点关注几个关键变量：OHOS_ROOT_PATH、COMPILER_PATH、SYSROOT_PATH

编译生成的ko和fip.bin后，会拷贝到outdir下面，最终会一起打包进rootfs

编译SDK sample。

进入sdk/smp/a55_linux/mpp/sample，执行：make

编译完成后，各sample可执行文件位于sdk/smp/a55_linux/mpp/sample对应的目录下。

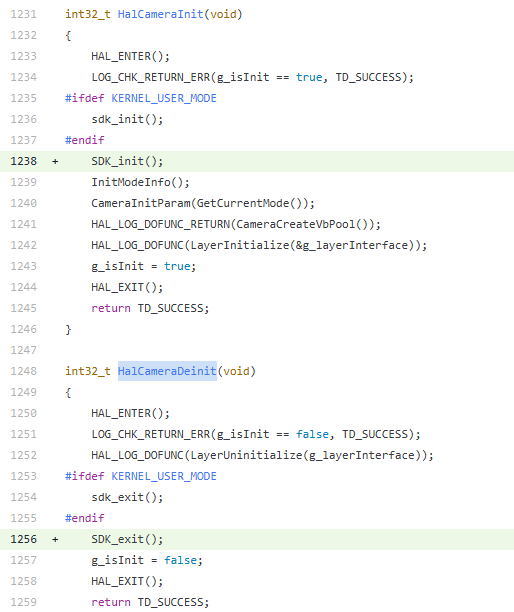

说明： sample中使用了SDK_init和SDK_exit来进行MPP各个模块的初始化和退出。hnr需要使用pqp模块，SDK_init中默认未初始化pqp模块，因此需要单独对hnr的sample进行重编，具体步骤为：
1. 将sdk/smp/a55_linux/mpp/sample/common/sdk_module_init.h头文件中的宏定义INIT_PQP修改为1；
2. 进入hnr目录重编，命令如下。
cd sdk/smp/a55_linux/mpp/sample/hnr make clean make

SDK打包进文件系统¶

修改文件device/soc/hisilicon/ss928v100/sdk_linux/BUILD.gn，将芯片SDK自带的用户态lib库文件拷贝进outdir中，从而被打包进rootfs中。

sdk_libs_name_set:为在OpenHarmony环境上运行SDK Sample所必须依赖的用户态lib库文件。

#####################################################################
sdk_libs_name_set = [
  "libaac_comm.so",
  "libaac_dec.so",
  "libaac_enc.so",
  "libaac_sbr_dec.so",
  "libaac_sbr_enc.so",
  "libaiv.so",
...
]

if (defined(ohos_lite)) {
  lib_lite_abspath = rebase_path("$SDK_LINUX_LIB_LITE_PATH", ".")
  sdk_linux_libs_targets = []

  foreach(lib, sdk_libs_name_set) {
    copy("$lib") {
      sources = [ "$lib_lite_abspath/$lib" ]
      outputs = [ "$root_out_dir/$lib" ]
    }
    sdk_linux_libs_targets += [ ":$lib" ]
  }

  group("sdk_linux_lite_libs") {
    deps = sdk_linux_libs_targets
  }
} else {
  not_needed([
               SDK_LINUX_LIB_LITE_PATH,
               SDK_LINUX_PATH,
             ])
  not_needed(sdk_libs_name_set)
}

修改文件third_party/musl/scripts/build_lite/BUILD.gn，将运行SDK lib库文件依赖的编译器库文件打包进文件系统。

 if (!is_llvm_build) {
    # copy C/C++ runtime libraries to lib out dir
    if (ohos_build_compiler == "clang") {
      runtime_libs = [
        "libc++.so",
        "libc.so",
        "libomp.so",
      ]
      compiler_cmd = "$ohos_current_cxx_command --target=$target_triple --sysroot=$sysroot_path $arch_cflags"
    }

ko和fip.bin已经在SDK编译适配说明。

产品配置¶

产品目录规划为：

vendor/hisilicon/hispark_ss928v100_linux/    #hispark_ss928v100_linux小系统相关配置
├── BUILD.gn
├── config.json                           #定义当前产品集成subsystem范围，添加到config.json才会加入编译构建
├── fs.yml                    #指导构建打包生成rootfs，将组件编译产物打包设置文件属性、权限、创建软链接，制作文件系统镜像
├── hals
├── hdf_config
├── init_configs
│   ├── BUILD.gn
│   ├── etc                                 #定义系统初始化启动脚本，用于创建和挂载设备节点、加载ko文件等
│   └── init_linux_openharmony.cfg          #定义系统启动时的初始化参数和配置，由init进程解析加载
└── ohos.build

Linux内核适配¶

OpenHarmony 5.1.0 Release的和SS928V100 sdk的内核均是来源于Linux-6.6，内核适配主要是兼容2种内核代码差异，代码模型如图1所示。

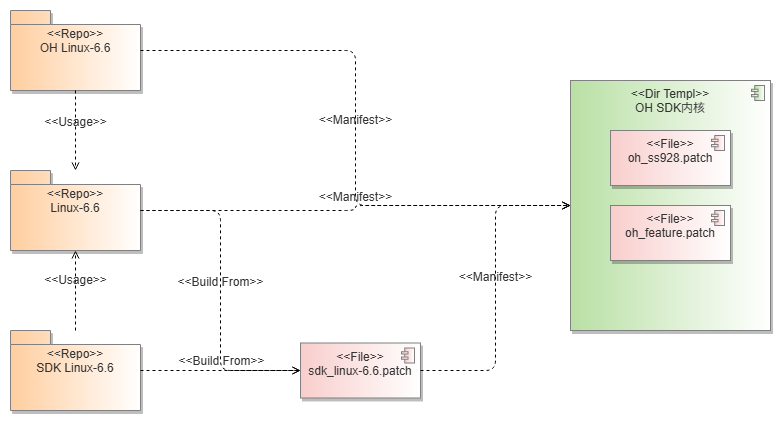

图 1 SS928V100内核适配代码模型

OpenHarmony内核适配SS928V100¶

基于同一Linux 6.6版本下，SS928V100 SDK 的内核适配OpenHarmony主要分为以下3个子仓适配。

说明：

kernel/linux/config/linux-6.6/arch/arm64/configs/hispark_ss928v100_small_defconfig

kernel/linux/patches/linux-6.6/hispark_ss928v100_patch 以上目录和文件，生成方法见《OpenHarmony内核适配SS928V100 SDK 内核6.6特性指导文档》。

kernel/linux/build

修改文件kernel/linux/build/kernel_module_build.sh

if [ "$BUILD_TYPE" == "small" ];then
    LINUX_KERNEL_OUT=${OUT_DIR}/kernel/${KERNEL_VERSION}
elif [ "$BUILD_TYPE" == "standard" ];then
    LINUX_KERNEL_OUT=${OUT_DIR}/kernel/src_tmp/${KERNEL_VERSION}
fi

if [ "$DEVICE_NAME" == "hispark_ss927v100" ];then
    LINUX_KERNEL_OBJ_OUT=${OUT_DIR}/kernel/${KERNEL_VERSION}
elif [ "$DEVICE_NAME" == "hispark_ss928v100" ];then
    LINUX_KERNEL_OBJ_OUT=${OUT_DIR}/kernel/${KERNEL_VERSION}
else
    LINUX_KERNEL_OBJ_OUT=${OUT_DIR}/kernel/OBJ/${KERNEL_VERSION}
fi

export OHOS_ROOT_PATH=$(pwd)/../../..
# it needs adaptation for more device target
kernel_image=""
if [ "$KERNEL_ARCH" == "arm" ];then
    kernel_image="uImage"
elif [ "$KERNEL_ARCH" == "arm64" ];then
    kernel_image="Image"
elif [ "$KERNEL_ARCH" == "x86_64" ];then
    kernel_image="bzImage"
elif [ "$KERNEL_ARCH" == "loongarch64" ];then
    kernel_image="vmlinuz.efi"
fi

if [ "$DEVICE_NAME" == "hispark_ss927v100" ] || [ "$DEVICE_NAME" == "hispark_ss928v100" ]; then
    kernel_image="uImage"
fi

export KERNEL_IMAGE=${kernel_image}

修改kernel/linux/build/kernel.mk

...
KERNEL_SRC_TMP_PATH := $(OUT_DIR)/kernel/${KERNEL_VERSION}
ifeq ($(DEVICE_NAME), hispark_ss927v100)
    KERNEL_OBJ_TMP_PATH := $(OUT_DIR)/kernel/${KERNEL_VERSION}
else ifeq ($(DEVICE_NAME), hispark_ss928v100)
    KERNEL_OBJ_TMP_PATH := $(OUT_DIR)/kernel/${KERNEL_VERSION}
else
    KERNEL_OBJ_TMP_PATH := $(OUT_DIR)/kernel/OBJ/${KERNEL_VERSION}
endif
ifeq ($(BUILD_TYPE), standard)
    BOOT_IMAGE_PATH = $(OHOS_BUILD_HOME)/device/board/hisilicon/hispark_taurus/uboot/prebuilts
...
CLANG_CC := $(CLANG_HOST_TOOLCHAIN)/clang

ifeq ($(DEVICE_NAME), hispark_ss928v100)
    KERNEL_ARCH := arm64
    DEVICE_DTS_PATH := $(OHOS_BUILD_HOME)/device/soc/hisilicon/ss928v100/kernel/arch/$(KERNEL_ARCH)/boot/dts/vendor
    KERNEL_TMP_DTS_PATH := $(KERNEL_SRC_TMP_PATH)/arch/arm64/boot/dts/vendor
else ifeq ($(DEVICE_NAME), hispark_ss927v100)
    KERNEL_ARCH := arm64
    DEVICE_DTS_PATH := $(OHOS_BUILD_HOME)/device/soc/hisilicon/ss927v100/kernel/arch/$(KERNEL_ARCH)/boot/dts/vendor
    KERNEL_TMP_DTS_PATH := $(KERNEL_SRC_TMP_PATH)/arch/arm64/boot/dts/vendor
endif

KERNEL_CROSS_COMPILE :=

...
ifneq ($(DEVICE_NAME), $(filter $(DEVICE_NAME), hispark_ss927v100 hispark_ss928v100))
export KBUILD_OUTPUT=$(KERNEL_OBJ_TMP_PATH)
endif
$(KERNEL_IMAGE_FILE):
	$(hide) echo "build kernel..."
ifeq ($(DEVICE_NAME), hispark_phoenix)
	$(hide) rm -rf $(KERNEL_SRC_TMP_PATH);mkdir -p $(KERNEL_SRC_TMP_PATH);cp -arfP $(KERNEL_SRC_PATH)/* $(KERNEL_SRC_TMP_PATH)/
	$(hide) cd $(KERNEL_SRC_TMP_PATH)/drivers && rm -rf common && ln -s $(SDK_SOURCE_DIR)/common/drv ./common && cd -
	$(hide) cd $(KERNEL_SRC_TMP_PATH)/drivers && rm -rf msp && ln -s $(SDK_SOURCE_DIR)/msp/drv ./msp && cd -
else
	$(hide) rm -rf $(KERNEL_SRC_TMP_PATH);mkdir -p $(KERNEL_SRC_TMP_PATH);cp -arfL $(KERNEL_SRC_PATH)/* $(KERNEL_SRC_TMP_PATH)/
endif
	$(hide) $(OHOS_BUILD_HOME)/drivers/hdf_core/adapter/khdf/linux/patch_hdf.sh $(OHOS_BUILD_HOME) $(KERNEL_SRC_TMP_PATH) $(KERNEL_PATCH_PATH) $(DEVICE_NAME)


ifeq ($(DEVICE_NAME), hispark_ss927v100)
	$(hide) chmod 755 $(DEVICE_PATCH_DIR)/patch_ss927v100.sh
	$(hide) cd $(KERNEL_SRC_TMP_PATH);$(DEVICE_PATCH_DIR)/patch_ss927v100.sh $(DEVICE_PATCH_DIR)
else ifeq ($(DEVICE_NAME), hispark_ss928v100)
	$(hide) chmod 755 $(DEVICE_PATCH_DIR)/patch_ss928v100.sh
	$(hide) cd $(KERNEL_SRC_TMP_PATH);$(DEVICE_PATCH_DIR)/patch_ss928v100.sh $(DEVICE_PATCH_DIR)
else ifeq ($(PRODUCT_PATH), vendor/hisilicon/watchos)
	$(hide) cd $(KERNEL_SRC_TMP_PATH) && patch -p1 < $(PRODUCT_PATCH_FILE)
else
	$(hide) cd $(KERNEL_SRC_TMP_PATH) && test -f $(DEVICE_PATCH_FILE) && patch -p1 < $(DEVICE_PATCH_FILE) || true
endif

ifneq ($(findstring $(BUILD_TYPE), small),)
ifneq ($(DEVICE_NAME), $(filter $(DEVICE_NAME), hispark_ss927v100 hispark_ss928v100))
	$(hide) cd $(KERNEL_SRC_TMP_PATH) && patch -p1 < $(SMALL_PATCH_FILE)
endif
endif
ifeq ($(UNIFIED_COLLECTION_PATCH_FILE), $(wildcard $(UNIFIED_COLLECTION_PATCH_FILE)))
	$(hide) $(UNIFIED_COLLECTION_PATCH_FILE) $(OHOS_BUILD_HOME) $(KERNEL_SRC_TMP_PATH) $(DEVICE_NAME) $(KERNEL_VERSION)
endif
	$(hide) cp -rf $(KERNEL_CONFIG_PATH)/. $(KERNEL_SRC_TMP_PATH)/
	$(hide) $(KERNEL_MAKE) -C $(KERNEL_SRC_TMP_PATH) ARCH=$(KERNEL_ARCH) $(KERNEL_CROSS_COMPILE) distclean
	$(hide) $(KERNEL_MAKE) -C $(KERNEL_SRC_TMP_PATH) ARCH=$(KERNEL_ARCH) $(KERNEL_CROSS_COMPILE) $(DEFCONFIG_FILE)
ifeq ($(KERNEL_VERSION), linux-5.10)
	$(hide) $(KERNEL_MAKE) -C $(KERNEL_SRC_TMP_PATH) ARCH=$(KERNEL_ARCH) $(KERNEL_CROSS_COMPILE) modules_prepare
endif
	$(hide) $(KERNEL_MAKE) -C $(KERNEL_SRC_TMP_PATH) ARCH=$(KERNEL_ARCH) $(KERNEL_CROSS_COMPILE) -j64 $(KERNEL_IMAGE)
endif
ifeq ($(DEVICE_NAME), $(filter $(DEVICE_NAME), hispark_ss928v100 hispark_ss927v100))
	echo "$(KERNEL_OBJ_TMP_PATH)/arch/$(KERNEL_ARCH)/boot/uImage"
	$(hide) cp -rf $(KERNEL_OBJ_TMP_PATH)/arch/$(KERNEL_ARCH)/boot/uImage $(OUT_DIR)
	$(hide) $(KERNEL_MAKE) -C $(KERNEL_SRC_TMP_PATH) ARCH=$(KERNEL_ARCH) $(KERNEL_CROSS_COMPILE) scripts/module.lds
endif

kernel/linux/config

新增kernel/linux/config/linux-6.6/arch/arm64/configs/hispark_ss928v100_small_defconfig
kernel/linux/patches

新增如下patch目录kernel/linux/patches/linux-6.6/hispark_ss928v100_patch，目录结构规划如下。

hispark_ss928v100_patch       #ss928 sdk集成oh内核后的patch
├── oh_feature.patch       #OH特性的内核部分patch，和sdk内核代码不存在冲突
├── oh_ss928.patch         #OH特性和ss928 sdk内核特性合并patch
└── patch_ss928v100.sh     #执行应用patch脚本文件

内核编译调试¶

在OpenHarmony环境下整编kernel。

在ohos代码根目录下执行命令，整编Linux-6.6内核。
```
./build.sh --product-name=ipcamera_hispark_ss928v100_linux  --build-target linux_kernel  --ccache --no-prebuilt-sdk
```
说明： OpenHarmony支持多套内核版本Linux-5.10、Linux-6.6，默认匹配最高的内核版本；若要指定Linux-5.10 内核版本可以增加参数--gn-args linux_kernel_version=\"linux-5.10\"。可以参考kernel/linux/build/README_zh.md文档编译。
直接使用Makefile编译调试kernel。

通过在kernel/linux/build/BUILD.gn中增加编译kernel的command打印出来，从而实现手动调试Makefile，加粗部分为修改代码。

if (os_level == "mini" || os_level == "small") {
  build_ext_component("linux_kernel") {
    no_default_deps = true
    exec_path = rebase_path(".", root_build_dir)
    outdir = rebase_path("$root_out_dir")
    build_type = "small"
    product_path_rebase = rebase_path(product_path, ohos_root_path)
    command = "./kernel_module_build.sh ${outdir} ${build_type} ${target_cpu} ${product_path_rebase} ${board_name} ${linux_kernel_version}"
    print("++++++++ command: $command")
  }

在ohos目录下整编一次产品。
```
./build.sh --product-name=ipcamera_hispark_ss928v100_linux  --build-target linux_kernel  --ccache --no-prebuilt-sdk
```
在out/hispark_ss928v100/ipcamera_hispark_ss928v100_linux/build.log中查找步骤1增加打印，找到执行命令。
在Linux终端下进入kernel/linux/build目录，执行上述步骤1中打印出的调试编译内核的命令即可触发编译。

XTS最小集子系统适配¶

OpenHarmony子系统适配只需要在vendor/hisilicon/hispark_ss928v100_linux/config.json中增加对应子系统和部件，这样编译系统会将该部件纳入编译目标中。

本章节主要介绍SS928V100适配L1（不带屏）设备满足XTS认证的依赖的子系统集，如下仅提供参考。

添加依赖的OpenHarmony子系统集¶

  "subsystems": [
    {
      "subsystem": "systemabilitymgr",
      "components": [
        { "component": "samgr_lite", "features":[] },
        { "component": "safwk_lite", "features":[] }
      ]
    },
    {
      "subsystem": "hiviewdfx",
      "components": [
        { "component": "hilog_lite", "features":[] },
        { "component": "faultloggerd", "features":[] }
      ]
    },
    {
      "subsystem": "security",
      "components": [
        { "component": "permission_lite", "features":[] },
        { "component": "appverify", "features":[] },
        { "component": "device_auth", "features":[] },
        { "component": "huks", "features":
          [
            "huks_config_file = \"hks_config_small.h\"",
            "huks_uid_trust_list_define = \"{}\""
          ]
        }
      ]
    },
    {
      "subsystem": "startup",
      "components": [
        { "component": "bootstrap_lite", "features":[] },
        { "component": "init", "features":["init_feature_begetctl_liteos=true"] },
        { "component": "appspawn", "features":[] }
      ]
    },
    {
      "subsystem": "kernel",
      "components": [
        { "component": "linux", "features":[] }
      ]
    },
    {
      "subsystem": "hdf",
      "components": [
        { "component": "hdf_core", "features":[ "hdf_core_platform_test_support = true" ] }
      ]
    },
    {
      "subsystem": "bundlemanager",
      "components": [
        { "component": "bundle_framework_lite", "features":[] }
      ]
    },
    {
      "subsystem": "developtools",
      "components": [
        { "component": "syscap_codec", "features":[] }
      ]
    },
    {
      "subsystem": "xts",
      "components": [
        { "component": "acts", "features":[] },
        { "component": "tools", "features":[] },
        { "component": "device_attest_lite", "features":[] }
      ]
    },
    {
      "subsystem": "communication",
      "components": [
        { "component": "dhcp", "features":[] }
      ]
    }
  ],

添加系统启动服务配置¶

修改vendor/hisilicon/hispark_ss928v100_linux/init_configs/init_linux_openharmony.cfg新增启动服务。

                "start ueventd",
                "start shell",
                "start apphilogcat",
                "start foundation",
                "start bundle_daemon",
                "start faultloggerd",
                "start devattest_service",
                "start huks_server"

子系统部件适配SS928V100¶

参照添加依赖的OpenHarmony子系统集，适配SS928V100修改、解决编译问题。

修改acts编译gn文件¶

修改test/xts/acts/build_lite/BUILD.gn文件，注释第106行和107行，ActsBundleMgrTest和ActsAbilityMgrTest为带屏设备需要。

    } else if (ohos_kernel_type == "linux") {
      all_features += [
        "//test/xts/acts/distributeddatamgr_lite/kv_store_posix:ActsKvStoreTest",
        "//test/xts/acts/startup_lite/syspara_posix:ActsParameterTest",
        "//test/xts/acts/startup_lite/bootstrap_posix:ActsBootstrapTest",
        "//test/xts/acts/communication_lite/lwip_posix:ActsLwipTest",
        "//test/xts/acts/security_lite:securitytest",

        #"//test/xts/acts/multimedia_lite/camera_lite_posix/camera_native:ActsMediaCameraTest",
        #"//test/xts/acts/multimedia_lite/media_lite_posix/player_native:ActsMediaPlayerTest",
        #"//test/xts/acts/multimedia_lite/media_lite_posix/recorder_native:ActsMediaRecorderTest",
        "//test/xts/acts/distributed_schedule_lite/system_ability_manager_posix:ActsSamgrTest",
       #"//test/xts/acts/appexecfwk_lite/appexecfwk_posix:ActsBundleMgrTest",
       #"//test/xts/acts/ability_lite/ability_posix:ActsAbilityMgrTest",
        "//test/xts/acts/ai_lite/ai_engine_posix/base:ActsAiEngineTest",
        "//test/xts/acts/xts_lite/device_attest_lite/device_attestStart_posix:ActsDeviceAttestStartTest",
        "//test/xts/acts/xts_lite/device_attest_lite/device_attestQuerry_posix:ActsDeviceAttestQuerryTest",
      ]
    }

XTS测试用例问题修复¶

修改test/xts/acts/distributed_schedule_lite/system_ability_manager_posix/src/LiteIPCClientTest.cpp文件, 原生代码如下：

此用例是因为了验证SAMGR_GetRemoteIdentity接口当服务不存在时获取到无效的IPC服务地址，因此加粗部分svcIdentity.token返回的是一个无效指针数据值为-1，在64位系统下占用8个字节，与0xffffffff做相等比较时会导致用例无法有效执行。

HWTEST_F(LiteIPCClientTest, testIPCClient0130, Function | MediumTest | Level2)
{
    SvcIdentity svcIdentity = SAMGR_GetRemoteIdentity("noExistService", "noExistFeature");
    ASSERT_EQ(svcIdentity.handle == 0xffffffff, TRUE);
    ASSERT_EQ(svcIdentity.token == 0xffffffff, TRUE);
};

修改后代码如下：

HWTEST_F(LiteIPCClientTest, testIPCClient0130, Function | MediumTest | Level2)
{
    SvcIdentity svcIdentity = SAMGR_GetRemoteIdentity("noExistService", "noExistFeature");
    ASSERT_EQ(svcIdentity.handle == 0xffffffff, TRUE);
    // token type is uintptr_t
    ASSERT_EQ(svcIdentity.token == INVALID_INDEX, TRUE);
};

xts工具问题修复¶

修改test/xts/tools/lite/build/suite.py文件，源生代码如下：

说明： 此部分代码是用于将编译打包xdevice工具打包，当前编译生成的xdevice-0.0.0-py3.11.egg和xdevice_ohos-0.0.0-py.3.11.egg文件安装默认时，默认会从外网下载xdevice，用户若能正常下载可跳过此章节。

class XDeviceBuilder:
    """
    To build XTS as a egg package
    @arguments(project_dir, output_dirs)
    """

    def __init__(self, arguments):
        parser = argparse.ArgumentParser()
        parser.add_argument('--project_dir', help='', required=True)
        parser.add_argument('--output_dirs', help='', required=True)
        self.args = parser.parse_args(arguments)

    def build_xdevice(self):
        """
        build xdevice package
        :return:
        """
        ohos_dir = os.path.join(self.args.project_dir, 'plugins', 'ohos')
        command = [utils.get_python_cmd(), "setup.py", "install", "--user"]
        factory_script = os.path.join(self.args.project_dir, "factory.sh")
        if os.path.exists(factory_script):
            os.chmod(factory_script, 0o775)
            command = factory_script

可将xdevice打包改成tar.gz文件格式打包工具。

command = [utils.get_python_cmd(), "setup.py", "sdist"]

带屏XTS最小集子系统适配¶

修改acts编译gn文件¶

修改test/xts/acts/build_lite/BUILD.gn文件，放开第106行和107行参与acts套件编译，ActsBundleMgrTest和ActsAbilityMgrTest为带屏设备需要。

    } else if (ohos_kernel_type == "linux") {
      all_features += [
        "//test/xts/acts/distributeddatamgr_lite/kv_store_posix:ActsKvStoreTest",
        "//test/xts/acts/startup_lite/syspara_posix:ActsParameterTest",
        "//test/xts/acts/startup_lite/bootstrap_posix:ActsBootstrapTest",
        "//test/xts/acts/communication_lite/lwip_posix:ActsLwipTest",
        "//test/xts/acts/security_lite:securitytest",

        #"//test/xts/acts/multimedia_lite/camera_lite_posix/camera_native:ActsMediaCameraTest",
        #"//test/xts/acts/multimedia_lite/media_lite_posix/player_native:ActsMediaPlayerTest",
        #"//test/xts/acts/multimedia_lite/media_lite_posix/recorder_native:ActsMediaRecorderTest",
        "//test/xts/acts/distributed_schedule_lite/system_ability_manager_posix:ActsSamgrTest",
       "//test/xts/acts/appexecfwk_lite/appexecfwk_posix:ActsBundleMgrTest",
       "//test/xts/acts/ability_lite/ability_posix:ActsAbilityMgrTest",
        "//test/xts/acts/ai_lite/ai_engine_posix/base:ActsAiEngineTest",
        "//test/xts/acts/xts_lite/device_attest_lite/device_attestStart_posix:ActsDeviceAttestStartTest",
        "//test/xts/acts/xts_lite/device_attest_lite/device_attestQuerry_posix:ActsDeviceAttestQuerryTest",
      ]
    }

config.json中添加依赖子系统¶

在vendor/hisilicon/hispark_ss928v100_linux/config.json中增加ability子系统，为带屏测试套件编译所需。

    {
      "subsystem": "ability",
      "components": [
        { "component": "ability_lite", "features":[ "ability_lite_enable_ohos_appexecfwk_feature_ability = true" ] },
        { "component": "dmsfwk_lite", "features":[] }
      ]
    },

添加系统启动服务配置¶

修改vendor/hisilicon/hispark_ss928v100_linux/init_configs/init_linux_openharmony.cfg新增启动服务，加粗部分为新增修改。

                "start ueventd",
                "start shell",
                "start apphilogcat",
                "start foundation",
                "start bundle_daemon",
              "start appspawn",
                "start faultloggerd",
                "start devattest_service",
                "start huks_server"

完成以上修改acts编译gn文件至添加系统启动服务配置操作就可以运行L1带屏设备的acts套件，若遇到执行ActsAbilityMgrTest模块卡死情况，则需要适配security_appverify组件，解决hap校验问题即可。

xts测试用例问题修复¶

修改test/xts/acts/ability_lite/ability_posix/src/AbilityMgrTest.cpp测试用例，源生代码如下：

此用例是因为了验证DisConnectAbility接口，而下述代码加粗部分g_errorcode==16为异常保护，会导致用例无法有效执行；但是DisConnectAbility和ConnectAbility要成对出现，会导致用例失败。

HWTEST_F(AbilityMgrTest, testDisConnectAbility, Function | MediumTest | Level1)
{
    printf("------start testDisConnectAbility------\n");
    Want want = { nullptr };
    ElementName element = { nullptr };
    SetElementBundleName(&element, "com.openharmony.testnative");
    SetElementAbilityName(&element, "ServiceAbility");
    SetWantElement(&want, element);
    sem_init(&g_sem, 0, 0);
    int result = ConnectAbility(&want, &g_conn, this);
    struct timespec ts = {};
    clock_gettime(CLOCK_REALTIME, &ts);
    ts.tv_sec += WAIT_TIMEOUT;
    sem_timedwait(&g_sem, &ts);
    printf("sem exit \n");
    printf("ret of connect is %d \n ", result);
    if (g_errorCode == 16) {
        result = DisconnectAbility(&g_conn);
        usleep(900000);
        EXPECT_EQ(result, 0);
        printf("ret of disconnect is %d \n ", result);
    }
    ClearElement(&element);
    ClearWant(&want);
    printf("------end testDisConnectAbility------\n");
}

估可以去掉源生g_errorcode==16，或者将DisConnectAbility和ConnectAbility场景移至最后执行，本文采取去掉异常保护，修改后代码。

HWTEST_F(AbilityMgrTest, testDisConnectAbility, Function | MediumTest | Level1)
{
    printf("------start testDisConnectAbility------\n");
    Want want = { nullptr };
    ElementName element = { nullptr };
    SetElementBundleName(&element, "com.openharmony.testnative");
    SetElementAbilityName(&element, "ServiceAbility");
    SetWantElement(&want, element);
    sem_init(&g_sem, 0, 0);
    int result = ConnectAbility(&want, &g_conn, this);
    struct timespec ts = {};
    clock_gettime(CLOCK_REALTIME, &ts);
    ts.tv_sec += WAIT_TIMEOUT;
    sem_timedwait(&g_sem, &ts);
    printf("sem exit \n");
    printf("ret of connect is %d \n ", result);
    result = DisconnectAbility(&g_conn);
    usleep(900000);
    EXPECT_EQ(result, 0);
    printf("ret of disconnect is %d \n ", result);
    ClearElement(&element);
    ClearWant(&want);
    printf("------end testDisConnectAbility------\n");
}

单步调试xts的testcase¶

本小节主要介绍xts测试过程中，出现卡死或单个testcase执行失败场景，定位具体用例失败原因。

以ActsAbilityMgrTest为例说明。重新NFS挂载好单板后，在板端执行观察用例执行情况。

./ActsAbilityMgrTest.bin --gtest_output=xml:/storage/test_root/aafwk/reportsn --gtest_output=xml:/storage/test_root/aafwk/reports

图形¶

OpenHarmony增加图形子系统，需要在vendor/hisilicon/hispark_ss928v100_linux/config.json中增加对应子系统和部件，同时在device/soc/hisilicon目录中是芯片相关的适配，其中图形的适配代码存在于device/soc/hisilicon/common/hal/display中。

config.json中新增图形子系统依赖的部件¶

在vendor/hisilicon/hispark_ss928v100_linux/config.json文件，"subsystems"标签中添加如下代码：

    {
        "subsystem": "arkui",
        "components": [
            { "component": "ui_lite", "features":[ "ui_lite_enable_graphic_font_config = true" ] }
        ]
    },
    {
        "subsystem": "graphic",
        "components": [
           { "component": "graphic_utils_lite", "features":[] },
           { "component": "surface_lite", "features":[] }
        ]
    },
    {
        "subsystem": "window",
        "components": [
            { "component": "window_manager_lite", "features":[] }
        ]
    }

device/soc/hisilicon下新增SS928V100图形相关驱动代码¶

在device/soc/hisilicon/common/hal/display下新增SS928V100目录，用于放置SS928V100图形驱动相关代码。图形驱动HDI接口的整体介绍可以参考drivers/peripheral/display/README_zh.md文档中的描述。

**注意：**相比于Hi3516DV300芯片适配，SS928V100的sdk经过用户态整改后，需要在用户态先执行sdk各模块的init操作，再调用sdk接口。如果只启动图形功能，需要在InitDisplay里调用SdkInit完成几个模块的初始化接口调用：

static void SdkInit()
{
    td_s32 ret;
    ret = osal_init();
    if (ret != 0) {
        HDF_LOGE("%s: osal_init error:%d", __func__, ret);
    }
    ret = ot_base_mod_init();
    if (ret != 0) {
        HDF_LOGE("%s: BaseModInit error:%d", __func__, ret);
    }
    ret = ot_sys_mod_init();
    if (ret != 0) {
        HDF_LOGE("%s: SysModInit error:%d", __func__, ret);
    }
    ret = ot_rgn_mod_init();
    if (ret != 0) {
        HDF_LOGE("%s: ot_rgn_mod_init error:%d", __func__, ret);
    }
    ret = ot_vo_mod_init();
    if (ret != 0) {
        HDF_LOGE("%s: VoModInit error:%d", __func__, ret);
    }
}

同时，需要在DeinitDisplay函数里调用SdkExit完成去初始化：

static void SdkExit()
{
    ot_vo_mod_exit();
    ot_rgn_mod_exit();
    ot_sys_mod_exit();
    ot_base_mod_exit();
    osal_exit();
}

device/soc/hisilicon下SS928V100驱动代码编译适配¶

在device/soc/hisilicon/common/hal/display/BUILD.GN里增加SS928V100的编译命令：

if (board_name == "hispark_ss928v100" || board_name == "hispark_ss927v100") {
    shared_library("display_layer") {
      output_name = "display_layer"
      sources = [
        "//drivers/peripheral/display/hal/disp_hal.c",
        "ss928/src/display_layer.c",
        "ss928/src/display_overlay_layer.c",
        "ss928/src/vpss_resmng.c",
        "ss928/src/hdmi.c",
        "ss928/src/vo_parameter_calc.c",
        "ss928/src/bt1120.c"
      ]
      include_dirs = [
        "./ss928/include",
        "./ss928/include/adapt",
        "//drivers/peripheral/base",
        "//drivers/peripheral/display/hal",
        "//drivers/peripheral/display/interfaces/include",
        "//base/hiviewdfx/hilog_lite/interfaces/native/innerkits",
      ]

      deps = [
        "//third_party/bounds_checking_function:libsec_shared",
        "//drivers/hdf_core/adapter/uhdf2/utils:libhdf_utils"
      ]
      defines = ["__USER__"]
      cflags = [
        "-Wall",
        "-Wextra",
        "-Werror",
        "-fsigned-char",
        "-fno-common",
        "-fno-strict-aliasing",
        "-Wno-format",
        "-Wno-format-extra-args",
        "-Wno-error=implicit-function-declaration",
      ]

      if (ohos_kernel_type == "linux") {
      include_dirs += [
        "//device/soc/hisilicon/ss928v100/sdk_linux/smp/a55_linux/mpp/out/include"
      ]
      deps += ["//device/soc/hisilicon/ss928v100/sdk_linux:hispark_ss928v100_sdk"]
      }

      defines += [ "ENABLE_H8" ]
      defines += [ "DISENABLE_DISP" ]
      defines += [ "__HDMI_SUPPORT__" ]
      ldflags = [
        "-lss_mpi",
        "-lss_voice_engine",
        "-lss_hdmi",
        "-lot_osal",
        "-lot_base",
        "-lot_sys",
        "-lot_vo",
        "-lot_rgn",
        "-lot_irq",
      ]
      defines += [ "VPSS_GRP_START_ID=100" ]
      ldflags += [
        "-lss_dnvqe",
        "-lss_upvqe"
      ]
    }

    shared_library("display_gfx") {
      output_name = "display_gfx"
      sources = [ "ss928/src/display_gfx.c" ]
      include_dirs = [
        "./ss928/include",
        "./ss928/include/adapt",
        "//drivers/peripheral/base",
        "//drivers/peripheral/display/hal",
        "//drivers/peripheral/display/interfaces/include",
        "//base/hiviewdfx/hilog_lite/interfaces/native/innerkits",
      ]

      defines = [ "__USER__" ]
      deps = [
        "//third_party/bounds_checking_function:libsec_shared",
        "//drivers/hdf_core/adapter/uhdf2/utils:libhdf_utils"
      ]
      cflags = [
        "-Wall",
        "-Wextra",
        "-Werror",
        "-fsigned-char",
        "-fno-common",
        "-fno-strict-aliasing",
        "-Wno-format",
        "-Wno-format-extra-args",
      ]

      include_dirs += [
        "//device/soc/hisilicon/ss928v100/sdk_linux/smp/a55_linux/mpp/out/include"
      ]
      deps += ["//device/soc/hisilicon/ss928v100/sdk_linux:hispark_ss928v100_sdk"]

      defines += [ "ENABLE_H8" ]
      ldflags = [ "-lss_tde" ]
    }

    shared_library("display_gralloc") {
      output_name = "display_gralloc"
      sources = [ "ss928/src/display_gralloc.c" ]

      include_dirs = [
        "./ss928/include",
        "./ss928/include/adapt",
        "//drivers/peripheral/base",
        "//drivers/peripheral/display/hal",
        "//drivers/peripheral/display/interfaces/include",
        "//base/hiviewdfx/hilog_lite/interfaces/native/innerkits",
      ]

      defines = [ "__USER__" ]
      deps = [
        "//third_party/bounds_checking_function:libsec_shared",
        "//drivers/hdf_core/adapter/uhdf2/utils:libhdf_utils"
      ]
      cflags = [
        "-Wall",
        "-Wextra",
        "-Werror",
        "-fsigned-char",
        "-fno-common",
        "-fno-strict-aliasing",
        "-Wno-format",
        "-Wno-format-extra-args",
      ]

      include_dirs += [
        "//device/soc/hisilicon/ss928v100/sdk_linux/smp/a55_linux/mpp/out/include"
      ]
      deps += ["//device/soc/hisilicon/ss928v100/sdk_linux:hispark_ss928v100_sdk"]

      defines += [ "ENABLE_H8" ]
      ldflags = [
        "-lss_mpi",
        "-lss_voice_engine",
      ]

      ldflags += [
        "-lss_dnvqe",
        "-lss_upvqe"
      ]
    }

    lite_component("hdi_display") {
      features = [
        ":display_layer",
        ":display_gfx",
        ":display_gralloc"
      ]
    }
}

图形服务开机自启动适配¶

在vendor/hisilicon/hispark_ss928v100_linux/init_configs/init_linux_openharmony.cfg中增加图形子系统的启动命令，并修改图形服务的启动权限，可以在单板商店后自动启动图形服务。

在"cmds"中增加如下行：

    "start wms_server",

由于SDK用户态整改，图形子系统调用sdk部分接口打开/dev下设备时需要增加权限，在“services”中找到name为wms_server的项，修改caps如下：

    {
        "name" : "wms_server",
        "path" : ["/bin/wms_server"],
        "uid" : 10,
        "gid" : 10,
        "once" : 1,
        "importance" : 0,
        "caps" : [1, 17, 21, 23]
    }

媒体¶

OpenHarmony增加媒体子系统，需要在vendor/hisilicon/hispark_ss928v100_linux/config.json中增加对应子系统和部件，同时在device/soc/hisilicon目录中是芯片相关的适配，其中图形的适配代码存在于device/soc/hisilicon/common/hal/media中。

config.json中新增媒体子系统依赖的部件¶

在vendor/hisilicon/hispark_ss928v100_linux/config.json文件，"subsystems"标签中添加如下代码：

    {
        "subsystem": "multimedia",
        "components": [
            { "component": "camera_lite", "features":[] },
            { "component": "media_lite", "features":[] },
            { "component": "audio_lite", "features":[] },
            { "component": "camera_service", "features":[] }
        ]
    },

device/soc/hisilicon下适配SS928V100媒体代码¶

在device/soc/hisilicon/common/hal/media下新增SS928V100目录，用于放置SS928V100媒体相关适配代码。

**注意：**相比于Hi3516DV300芯片适配，SS928V100的sdk经过用户态整改后，需要在用户态先执行sdk各模块的init操作，再调用sdk接口。启动媒体功能，需要在HalCameraInit里调用SDK_init完成几个模块的初始化接口调用，并对应地在HalCameraDeinit调用SDK_exit完成去初始化，如下图所示：

在对应的device/soc/hisilicon/common/hal/media/camera/source/BUILD.gn文件中新增对sdk发布的部分so的依赖：

  ldflags += [ "-lot_osal" ]
  ldflags += [ "-lot_irq" ]
  ldflags += [ "-lss_isp" ]
  ldflags += [ "-lot_mpi_isp" ]
  ldflags += [ "-lot_isp" ]
  ldflags += [ "-lot_base" ]
  ldflags += [ "-lss_crb" ]
  ldflags += [ "-lss_ir_auto" ]
  ldflags += [ "-lss_awb" ]
  ldflags += [ "-lss_ive" ]
  ldflags += [ "-lss_dnvqe" ]
  ldflags += [ "-lss_drc" ]
  ldflags += [ "-lss_ldci" ]
  ldflags += [ "-lss_upvqe" ]
  ldflags += [ "-lss_dehaze" ]
  ldflags += [ "-lss_voice_engine" ]
  ldflags += [ "-lss_ae" ]
  ldflags += [ "-lss_bnr" ]
  ldflags += [ "-lss_acs" ]
  ldflags += [ "-lss_extend_stats" ]
  ldflags += [ "-lss_calcflicker" ]
  ldflags += [ "-lss_hdmi" ]
  ldflags += [ "-lot_sys" ]
  ldflags += [ "-lot_chnl" ]
  ldflags += [ "-lot_rgn" ]
  ldflags += [ "-lot_dis" ]
  ldflags += [ "-lot_vpp" ]
  ldflags += [ "-lot_vi" ]
  ldflags += [ "-lot_vpss" ]
  ldflags += [ "-lot_vo" ]
  ldflags += [ "-lot_vedu" ]
  ldflags += [ "-lot_rc" ]
  ldflags += [ "-lot_venc" ]
  ldflags += [ "-lot_h264e" ]
  ldflags += [ "-lot_h265e" ]
  ldflags += [ "-lot_jpege" ]
  ldflags += [ "-lot_jpegd" ]
  ldflags += [ "-lot_vfmw" ]
  ldflags += [ "-lot_vdec" ]
  ldflags += [ "-lot_aio" ]
  ldflags += [ "-lot_ai" ]
  ldflags += [ "-lot_ao" ]
  ldflags += [ "-lot_aenc" ]
  ldflags += [ "-lot_adec" ]
  ldflags += [ "-lot_acodec" ]

middleware相关适配

在device/soc/hisilicon/common/hal/middleware/BUILD.gn中，新增分支处理SS928V100适配，如下图：

foundation/multimedia/media_lite/services下新增sensor相关ini配置¶

在foundation/multimedia/media_lite/services下新增cameradev_hy_s0603_928.ini，并在对应的foundation/multimedia/media_lite/services/BUILD.gn文件中新增SS928V100的ini拷贝动作，如下图：

媒体服务开机自启动适配¶

在vendor/hisilicon/hispark_ss928v100_linux/init_configs/init_linux_openharmony.cfg中增加媒体子系统的启动命令，在"cmds"中增加如下行：

    "start media_server",
