AT 指令组包与注意事项
AT 指令组包示例
以下为AT常发常收指令的组包示例。
表 1 BT TX组包
调制速率 |
信道 |
指令组包 |
|---|---|---|
1M BR DH1 |
2402 |
AT^BTTX=27,112233445566,0,0,4,0,5,1 |
2440 |
AT^BTTX=27,112233445566,38,0,4,0,5,1 |
|
2480 |
AT^BTTX=27,112233445566,78,0,4,0,5,1 |
|
1M BR DH3 |
2402 |
AT^BTTX=183,112233445566,0,0,11,0,5,1 |
2440 |
AT^BTTX=183,112233445566,38,0,11,0,5,1 |
|
2480 |
AT^BTTX=183,112233445566,78,0,11,0,5,1 |
|
1M BR DH5 |
2402 |
AT^BTTX=339,112233445566,0,0,15,0,5,1 |
2440 |
AT^BTTX=339,112233445566,38,0,15,0,5,1 |
|
2480 |
AT^BTTX=339,112233445566,78,0,15,0,5,1 |
|
1M EDR 2DH1 |
2402 |
AT^BTTX=54,112233445566,0,3,4,0,5,1 |
2440 |
AT^BTTX=54,112233445566,38,3,4,0,5,1 |
|
2480 |
AT^BTTX=54,112233445566,78,3,4,0,5,1 |
|
1M EDR 3DH1 |
2402 |
AT^BTTX=83,112233445566,0,6,8,0,5,1 |
2440 |
AT^BTTX=83,112233445566,38,6,8,0,5,1 |
|
2480 |
AT^BTTX=83,112233445566,78,6,8,0,5,1 |
|
1M EDR 2DH3 |
2402 |
AT^BTTX=367,112233445566,0,3,10,0,5,1 |
2440 |
AT^BTTX=367,112233445566,38,3,10,0,5,1 |
|
2480 |
AT^BTTX=367,112233445566,78,3,10,0,5,1 |
|
1M EDR 3DH3 |
2402 |
AT^BTTX=552,112233445566,0,6,11,0,5,1 |
2440 |
AT^BTTX=552,112233445566,38,6,11,0,5,1 |
|
2480 |
AT^BTTX=552,112233445566,78,6,11,0,5,1 |
|
1M EDR 2DH5 |
2402 |
AT^BTTX=679,112233445566,0,3,14,0,5,1 |
2440 |
AT^BTTX=679,112233445566,38,3,14,0,5,1 |
|
2480 |
AT^BTTX=679,112233445566,78,3,14,0,5,1 |
|
1M EDR 3DH5 |
2402 |
AT^BTTX=1021,112233445566,0,6,15,0,5,1 |
2440 |
AT^BTTX=1021,112233445566,38,6,15,0,5,1 |
|
2480 |
AT^BTTX=1021,112233445566,78,6,15,0,5,1 |
表 2 BT RX组包
调制速率 |
信道 |
指令组包 |
|---|---|---|
1M BR DH1 |
2402 |
AT^BTRX=27,112233445566,0,0,4,1 |
2440 |
AT^BTRX=27,112233445566,38,0,4,1 |
|
2480 |
AT^BTRX=27,112233445566,78,0,4,1 |
|
1M BR DH3 |
2402 |
AT^BTRX=183,112233445566,0,0,11,1 |
2440 |
AT^BTRX=183,112233445566,38,0,11,1 |
|
2480 |
AT^BTRX=183,112233445566,78,0,11,1 |
|
1M BR DH5 |
2402 |
AT^BTRX=339,112233445566,0,0,15,1 |
2440 |
AT^BTRX=339,112233445566,38,0,15,1 |
|
2480 |
AT^BTRX=339,112233445566,78,0,15,1 |
|
1M EDR 2DH1 |
2402 |
AT^BTRX=54,112233445566,0,3,4,1 |
2440 |
AT^BTRX=54,112233445566,38,3,4,1 |
|
2480 |
AT^BTRX=54,112233445566,78,3,4,1 |
|
1M EDR 3DH1 |
2402 |
AT^BTRX=83,112233445566,0,6,8,1 |
2440 |
AT^BTRX=83,112233445566,38,6,8,1 |
|
2480 |
AT^BTRX=83,112233445566,78,6,8,1 |
|
1M EDR 2DH3 |
2402 |
AT^BTRX=367,112233445566,0,3,10,1 |
2440 |
AT^BTRX=367,112233445566,38,3,10,1 |
|
2480 |
AT^BTRX=367,112233445566,78,3,10,1 |
|
1M EDR 3DH3 |
2402 |
AT^BTRX=552,112233445566,0,6,11,1 |
2440 |
AT^BTRX=552,112233445566,38,6,11,1 |
|
2480 |
AT^BTRX=552,112233445566,78,6,11,1 |
|
1M EDR 2DH5 |
2402 |
AT^BTRX=679,112233445566,0,3,14,1 |
2440 |
AT^BTRX=679,112233445566,38,3,14,1 |
|
2480 |
AT^BTRX=679,112233445566,78,3,14,1 |
|
1M EDR 3DH5 |
2402 |
AT^BTRX=1021,112233445566,0,6,15,1 |
2440 |
AT^BTRX=1021,112233445566,38,6,15,1 |
|
2480 |
AT^BTRX=1021,112233445566,78,6,15,1 |
表 3 BLE TX组包
调制速率 |
信道 |
指令组包 |
|---|---|---|
BLE 1M |
2402 |
AT^BLETX=0,255,0,1 |
2440 |
AT^BLETX=19,255,0,1 |
|
2480 |
AT^BLETX=39,255,0,1 |
|
BLE 2M |
2402 |
AT^BLETX=0,255,0,2 |
2440 |
AT^BLETX=19,255,0,2 |
|
2480 |
AT^BLETX=39,255,0,2 |
|
BLE S8 |
2402 |
AT^BLETX=0,255,0,3 |
2440 |
AT^BLETX=19,255,0,3 |
|
2480 |
AT^BLETX=39,255,0,3 |
|
BLE S2 |
2402 |
AT^BLETX=0,255,0,4 |
2440 |
AT^BLETX=19,255,0,4 |
|
2480 |
AT^BLETX=39,255,0,4 |
表 4 BLE RX组包
调制速率 |
信道 |
指令组包 |
|---|---|---|
BLE 1M |
2402 |
AT^BLERX=0,1,0 |
2440 |
AT^BLERX=19,1,0 |
|
2480 |
AAT^BLERX=39,1,0 |
|
BLE 2M |
2402 |
AT^BLERX=0,2,0 |
2440 |
AT^BLERX=19,2,0 |
|
2480 |
AAT^BLERX=39,2,0 |
|
BLE S8 |
2402 |
AT^BLERX=0,3,0 |
2440 |
AT^BLERX=19,3,0 |
|
2480 |
AAT^BLERX=39,3,0 |
|
BLE S2 |
2402 |
AT^BLERX=0,4,0 |
2440 |
AT^BLERX=19,4,0 |
|
2480 |
AAT^BLERX=39,4,0 |
表 5 SLE TX组包
调制速率 |
信道 |
指令组包 |
|---|---|---|
1M GFSK |
2402 |
AT^SLETX=0,5,255,0,0,0,0,0,0,50 |
2440 |
AT^SLETX=38,5,255,0,0,0,0,0,0,50 |
|
2480 |
AT^SLETX=78,5,255,0,0,0,0,0,0,50 |
|
2M GFSK |
2404 |
AT^SLETX=2,5,255,0,1,0,0,0,0,50 |
2440 |
AT^SLETX=38,5,255,0,1,0,0,0,0,50 |
|
2478 |
AT^SLETX=76,5,255,0,1,0,0,0,0,50 |
|
4M GFSK |
2405 |
AT^SLETX=3,5,255,0,4,0,0,0,0,50 |
2441 |
AT^SLETX=39,5,255,0,4,0,0,0,0,50 |
|
2477 |
AT^SLETX=75,5,255,0,4,0,0,0,0,50 |
|
1M QPSK |
2402 |
AT^SLETX=0,5,255,0,0,2,2,3,2,50 |
2440 |
AT^SLETX=38,5,255,0,0,2,2,3,2,50 |
|
2480 |
AT^SLETX=78,5,255,0,0,2,2,3,2,50 |
|
2M QPSK |
2404 |
AT^SLETX=2,5,255,0,1,2,2,3,2,50 |
2440 |
AT^SLETX=38,5,255,0,1,2,2,3,2,50 |
|
2478 |
AT^SLETX=76,5,255,0,1,2,2,3,2,50 |
|
4M QPSK |
2405 |
AT^SLETX=3,5,255,0,4,2,2,3,2,50 |
2441 |
AT^SLETX=38,5,255,0,4,2,2,3,2,50 |
|
2477 |
AT^SLETX=75,5,255,0,4,2,2,3,2,50 |
|
1M 8PSK |
2402 |
AT^SLETX=0,5,255,0,0,2,3,3,2,50 |
2440 |
AT^SLETX=38,5,255,0,0,2,3,3,2,50 |
|
2480 |
AT^SLETX=78,5,255,0,0,2,3,3,2,50 |
|
2M 8PSK |
2404 |
AT^SLETX=2,5,255,0,1,2,3,3,2,50 |
2440 |
AT^SLETX=38,5,255,0,1,2,3,3,2,50 |
|
2478 |
AT^SLETX=76,5,255,0,1,2,3,3,2,50 |
|
4M 8PSK |
2405 |
AT^SLETX=3,5,255,0,4,2,3,3,2,50 |
2441 |
AT^SLETX=39,5,255,0,4,2,3,3,2,50 |
|
2477 |
AT^SLETX=75,5,255,0,4,2,3,3,2,50 |
表 6 SLE RX组包
调制速率 |
信道 |
指令组包 |
|---|---|---|
1M GFSK |
2402 |
AT^SLERX=0,0,0,0,19 |
2440 |
AT^SLERX=38,0,0,0,19 |
|
2480 |
AT^SLERX=78,0,0,0,19 |
|
2M GFSK |
2404 |
AT^SLERX=2,1,0,0,10 |
2440 |
AT^SLERX=38,0,0,0,10 |
|
2478 |
AT^SLERX=76,1,0,0,10 |
|
4M GFSK |
2405 |
AT^SLERX=3,4,0,0,6 |
2441 |
AT^SLERX=39,4,0,0,6 |
|
2477 |
AT^SLERX=75,4,0,0,6 |
|
1M QPSK |
2402 |
AT^SLERX=0,0,2,3,14 |
2440 |
AT^SLERX=38,0,2,3,14 |
|
2480 |
AT^SLERX=78,0,2,3,14 |
|
2M QPSK |
2404 |
AT^SLERX=2,1,2,3,8 |
2440 |
AT^SLERX=38,1,2,3,8 |
|
2478 |
AT^SLERX=76,1,2,3,8 |
|
4M QPSK |
2405 |
AT^SLERX=3,4,2,3,6 |
2441 |
AT^SLERX=39,4,2,3,6 |
|
2477 |
AT^SLERX=75,4,2,3,6 |
|
1M 8PSK |
2402 |
AT^SLERX=0,0,2,3,10 |
2440 |
AT^SLERX=38,0,2,3,10 |
|
2480 |
AT^SLERX=78,0,2,3,10 |
|
2M 8PSK |
2404 |
AT^SLERX=2,1,2,3,6 |
2440 |
AT^SLERX=38,1,2,3,6 |
|
2478 |
AT^SLERX=76,1,2,3,6 |
|
4M 8PSK |
2405 |
AT^SLERX=3,4,2,3,6 |
2441 |
AT^SLERX=39,4,2,3,6 |
|
2477 |
AT^SLERX=75,4,2,3,6 |
注意事项
除地址参数外，所有指令的参数输入格式必须为十进制
例如当包长0xFF需输入255时：
- 正确示例： AT^SLETX=0,5,255,0,1,2,2,0,0,50
- 错误示例： AT^SLETX=0,5,FF,0,1,2,2,0,0,50
说明： 除地址参数外，其余参数必须是十进制。
部分指令返回值为十六进制
-
发送：
AT^SLETRXEND
-
回复：
OK
status:0x0, num_packet:0x3e8, rssi:-127
说明： 测试RX的收报数为1000包（0x3E8)，RX的当前接收RSSI为-127dBm。
所有参数的间隔符逗号为英文字符
示例如下：
- 正确示例：AT^SLETX=0,5,255,0,1,2,2,0,0,50
-
错误示例：AT^SLETX=0，5，55,0,1,2,2,0,0,50
说明： 不识别中文字符逗号。
串口回复说明
- TRX射频指令测试时，串口回复重点关注“status:0“、“num_packets:3e8“、“rssi:-127“等字样。
- 由于指令执行时序异步，“OK”和其他业务上报打印的先后顺序不是固定的，且涉及BT/BLE/SLE TRX业务的指令，回复“OK”不代表指令正常执行。
星闪协议频点表

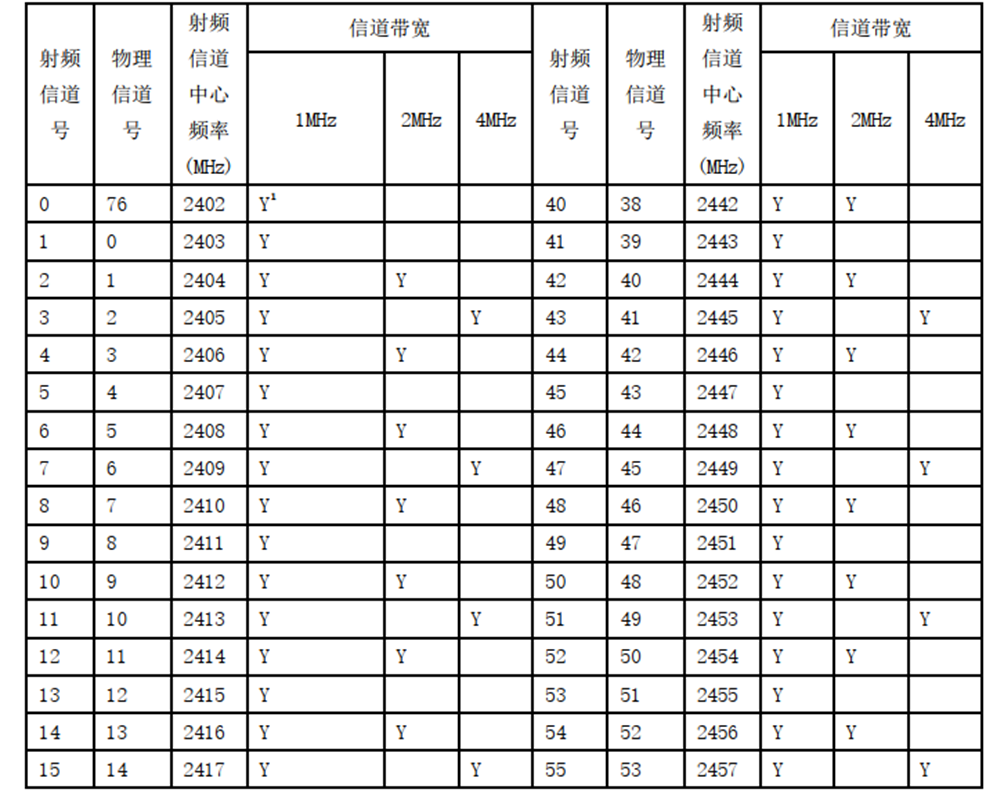

图 1 2400MHz频段不同带宽信道对应的射频信道中心频率和射频信道号（上半部分）

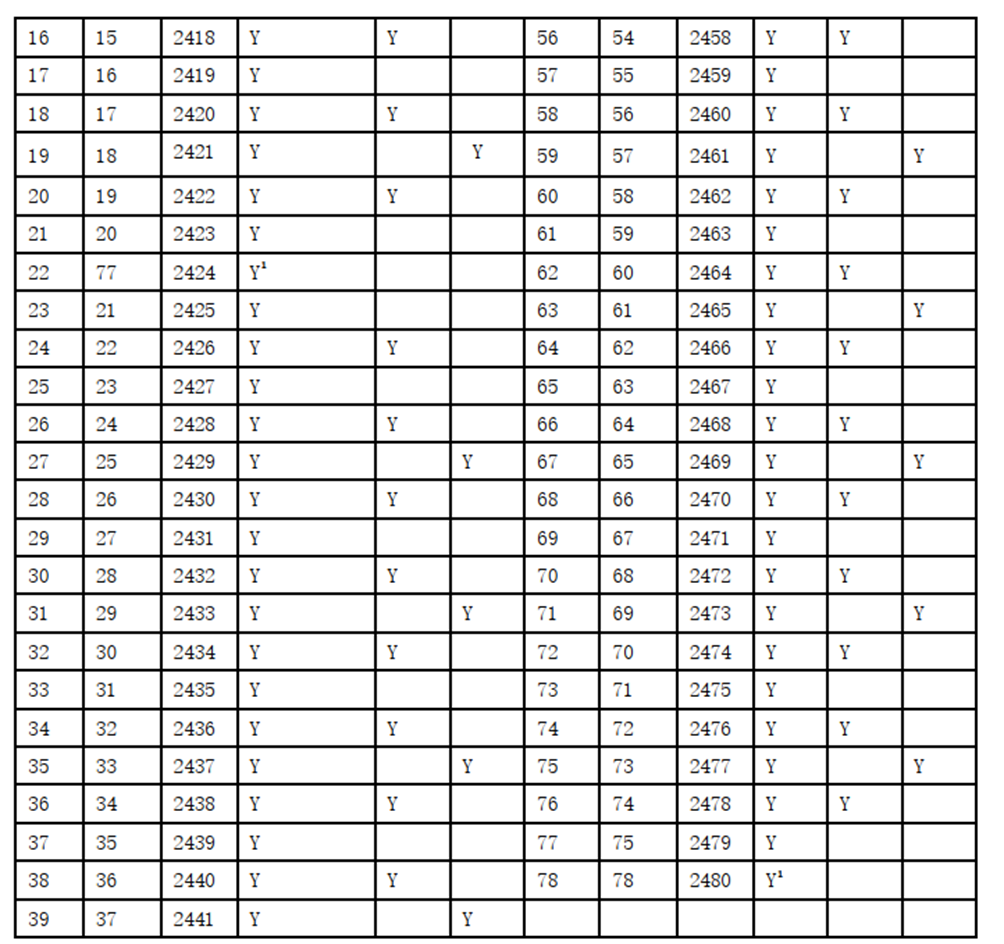

图 2 2400MHz频段不同带宽信道对应的射频信道中心频率和射频信道号（下半部分）
说明： 不同带宽的射频测试项需要测的频点不同，例如SLE 4M GFSK指令，测试低频的频点为2405MHz，而不是2402MHz。
